MultiModem ISI Server Cards User Guide 17

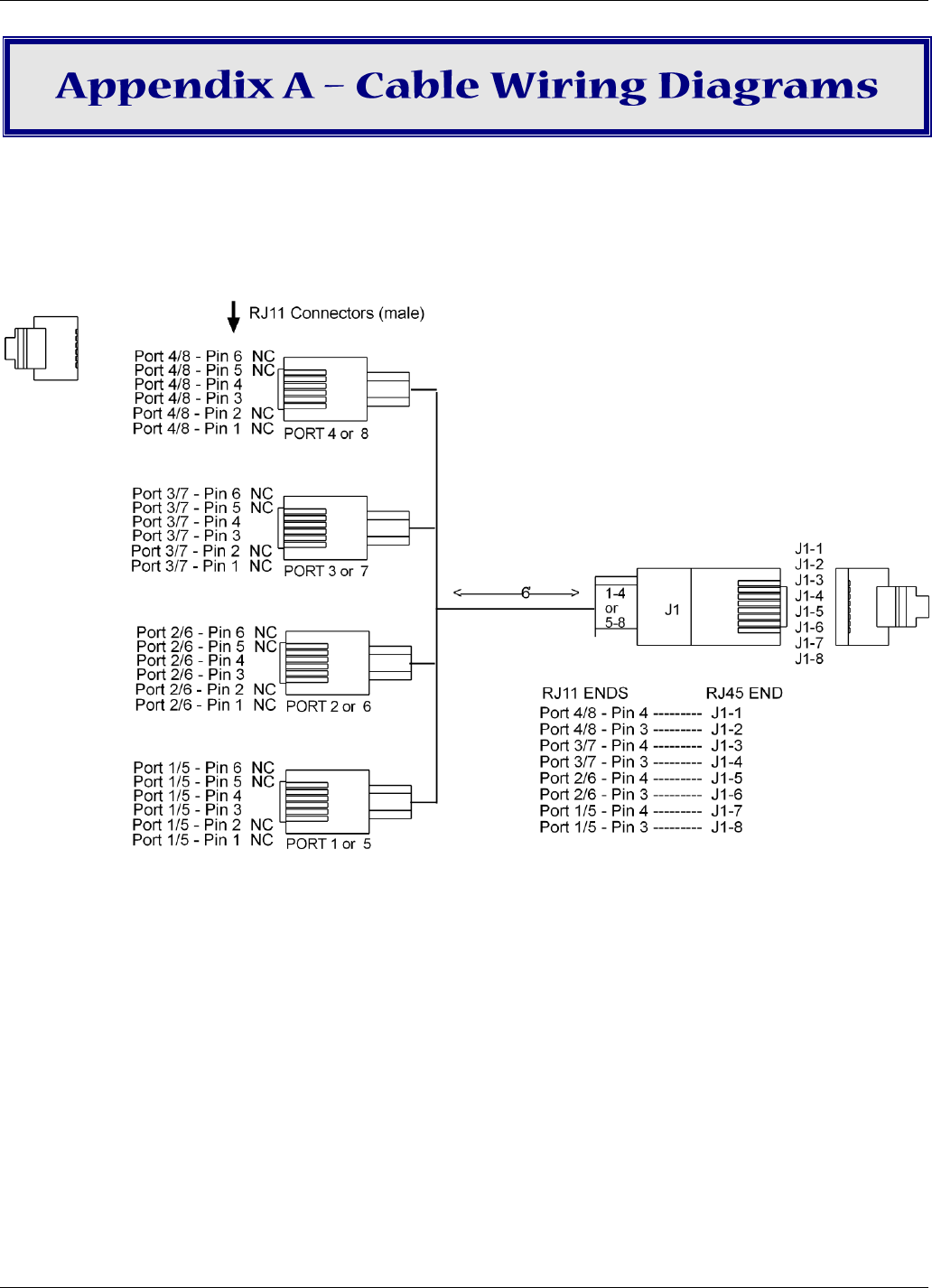

The four modems on the ISI-4 are attached to phone receptacles by a single fan-out cable that has an RJ45

connector on one end (which connects to the card) and four RJ11 connectors on the other end (which connect to

phone receptacles). The eight modems ISI-8 are served by two such fan-out cables. The pin out for the fan-out

cable is shown below.
