Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342I) 71
Application Notes
Tip and Ring Interface
OEM Motherboard

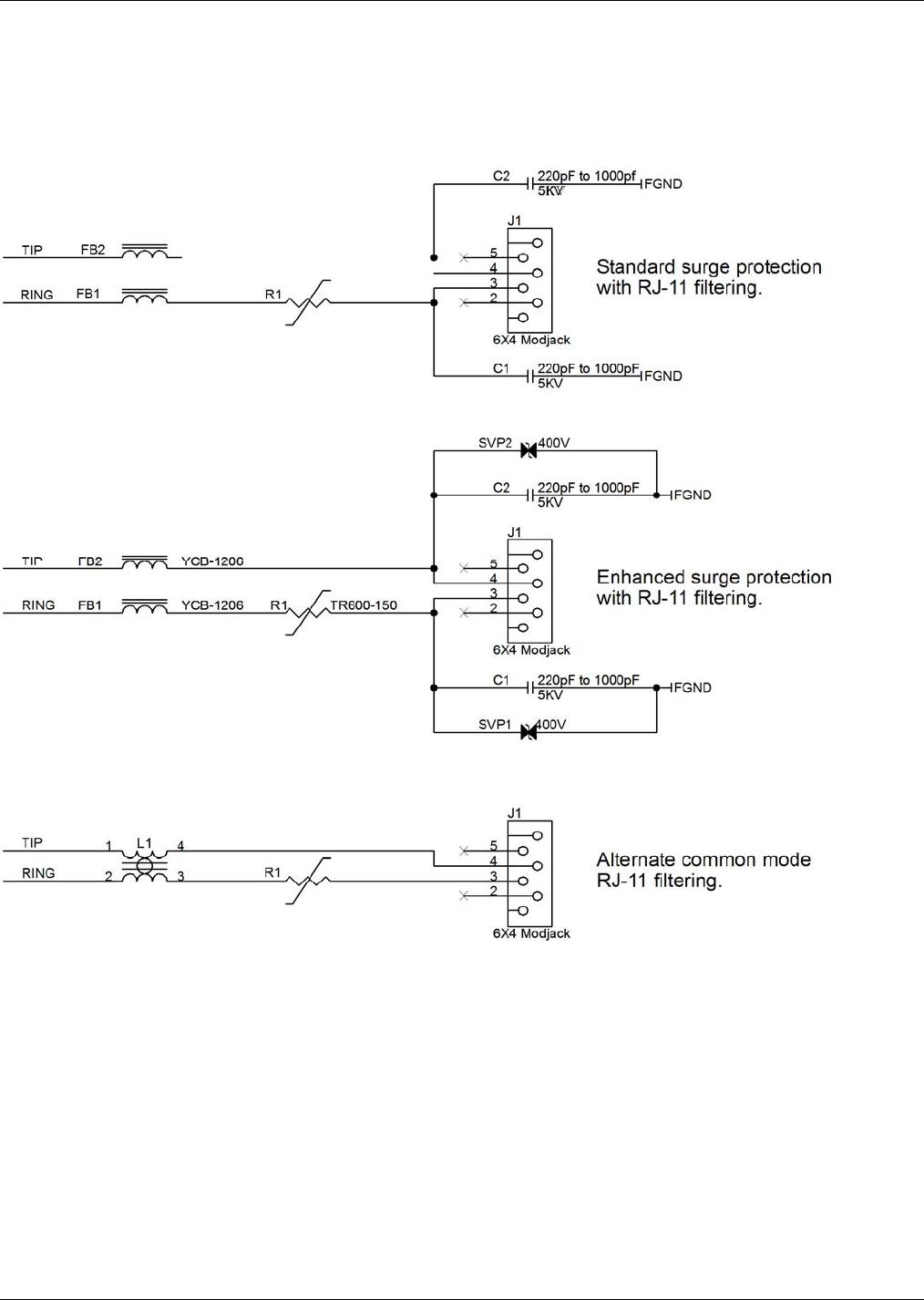

Filtering and Surge Protection Options
See Design Considerations and Recommended Parts in Chapter 1.
