47

Appendices

FR111A

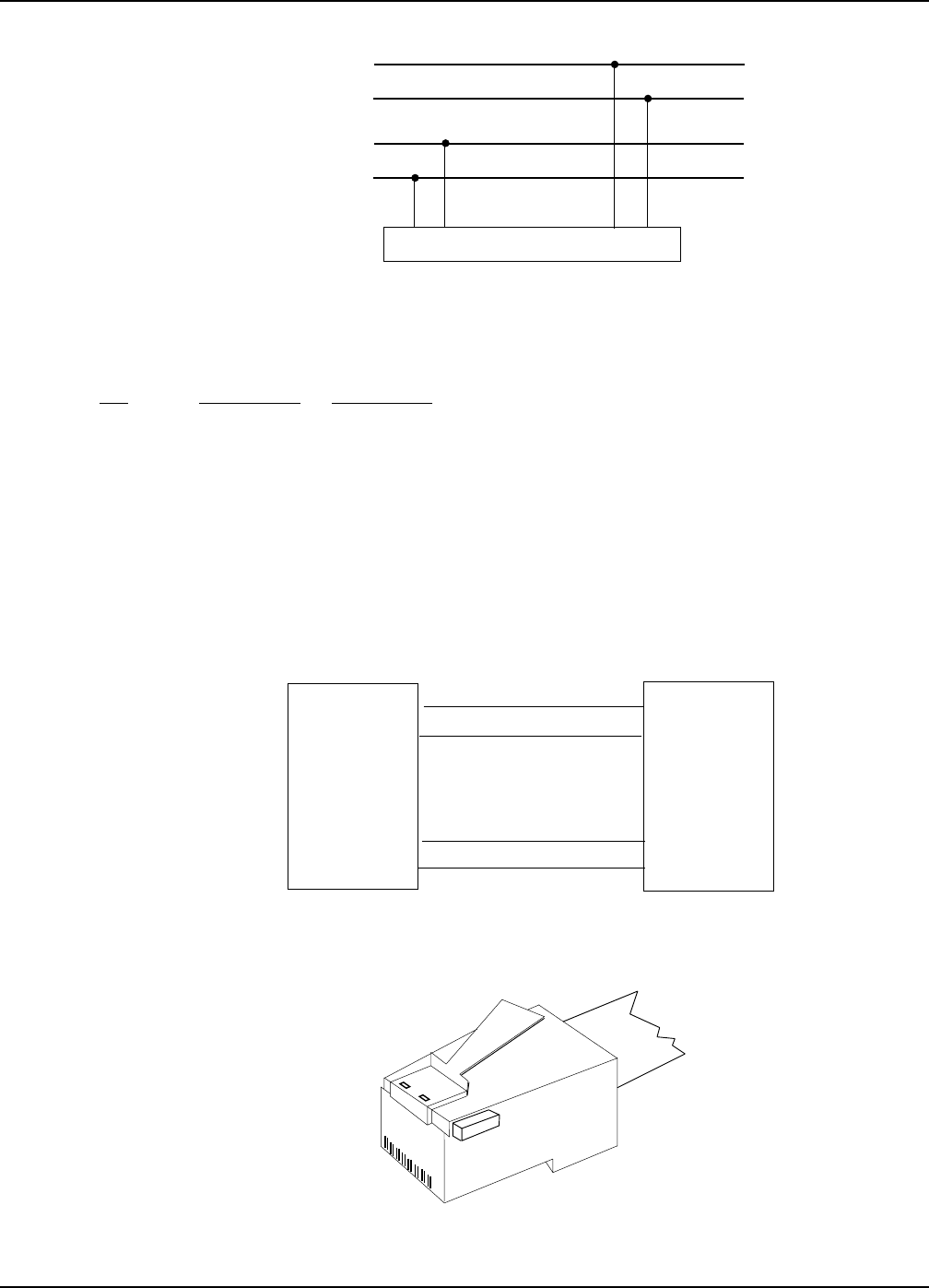

Trunk Cable

{

{

Receive

Transmit

RT

RR

RT

RR

1 2 3 4 5 6 7 8

RJ-48 Cable

Pin Identification

Pin Description Destination

1 Transmit Pair To Line

2 Transmit Pair To Line

3 N/C

4 N/C

5 N/C

6 N/C

7 Receive Pair From Line

8 Receive pair From Line

Back-To-Back Cable

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

RJ-48S

RJ-48S

Back-To Back Crossover

1

8

DDS RJ-48 Connector
