DSU ProxyServer User Guide

MTPSR2-201

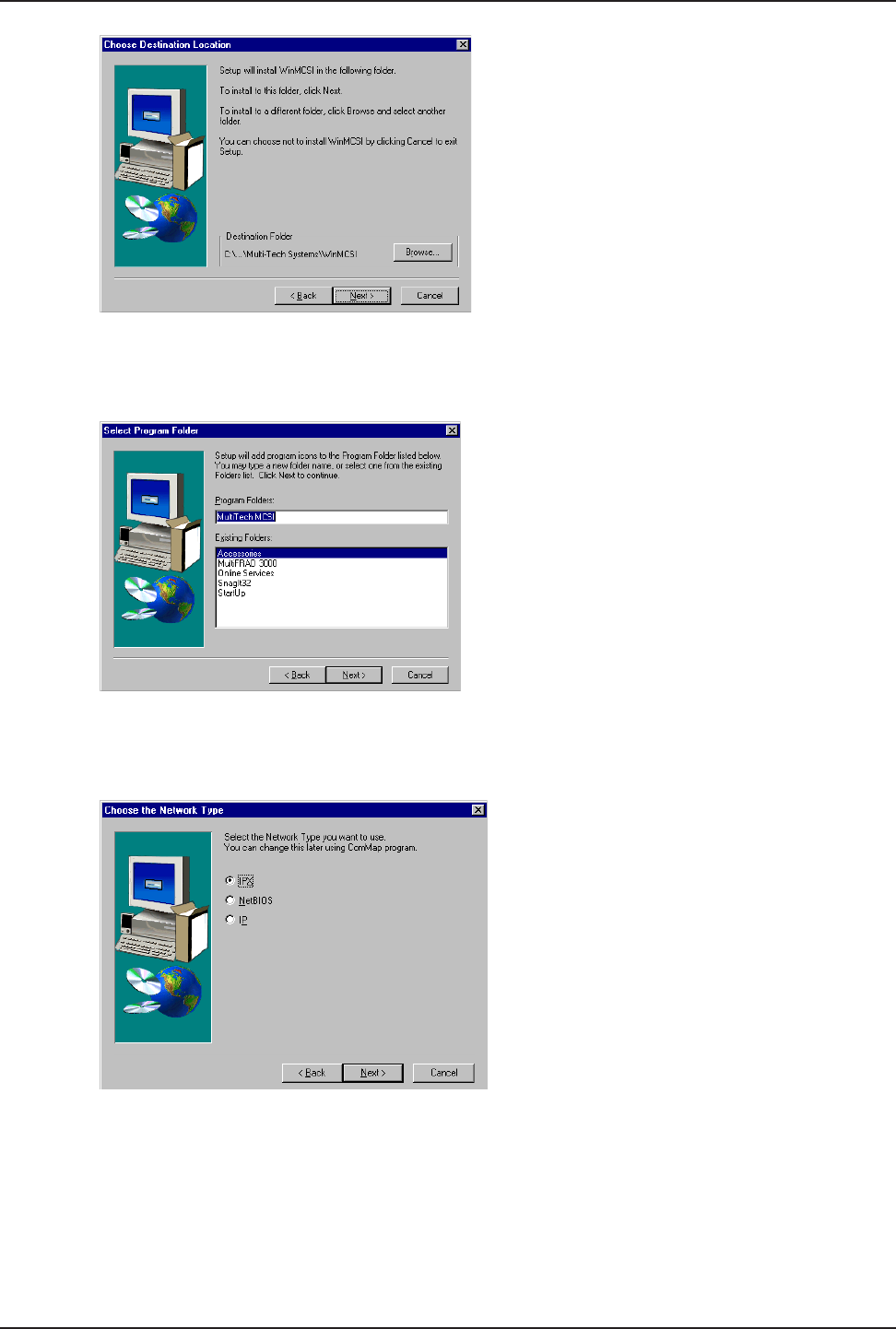

Click Next to accept the Destination Folder, or click Browse to select a different

destination.

17. The Select Program Folder screen is displayed.

Click Next to accept the new folder designation, or choose an existing folder from the list

provided.

18. The Choose Network Type screen is displayed.

Selections include IPX, NetBIOS, and IP (default is IPX). Click IP and then click Next to

proceed.

19. The COM Port to MCSI Mapping window is displayed.
