RASExpress User Guide

200 CommPlete Communications Server

SNMP Agent

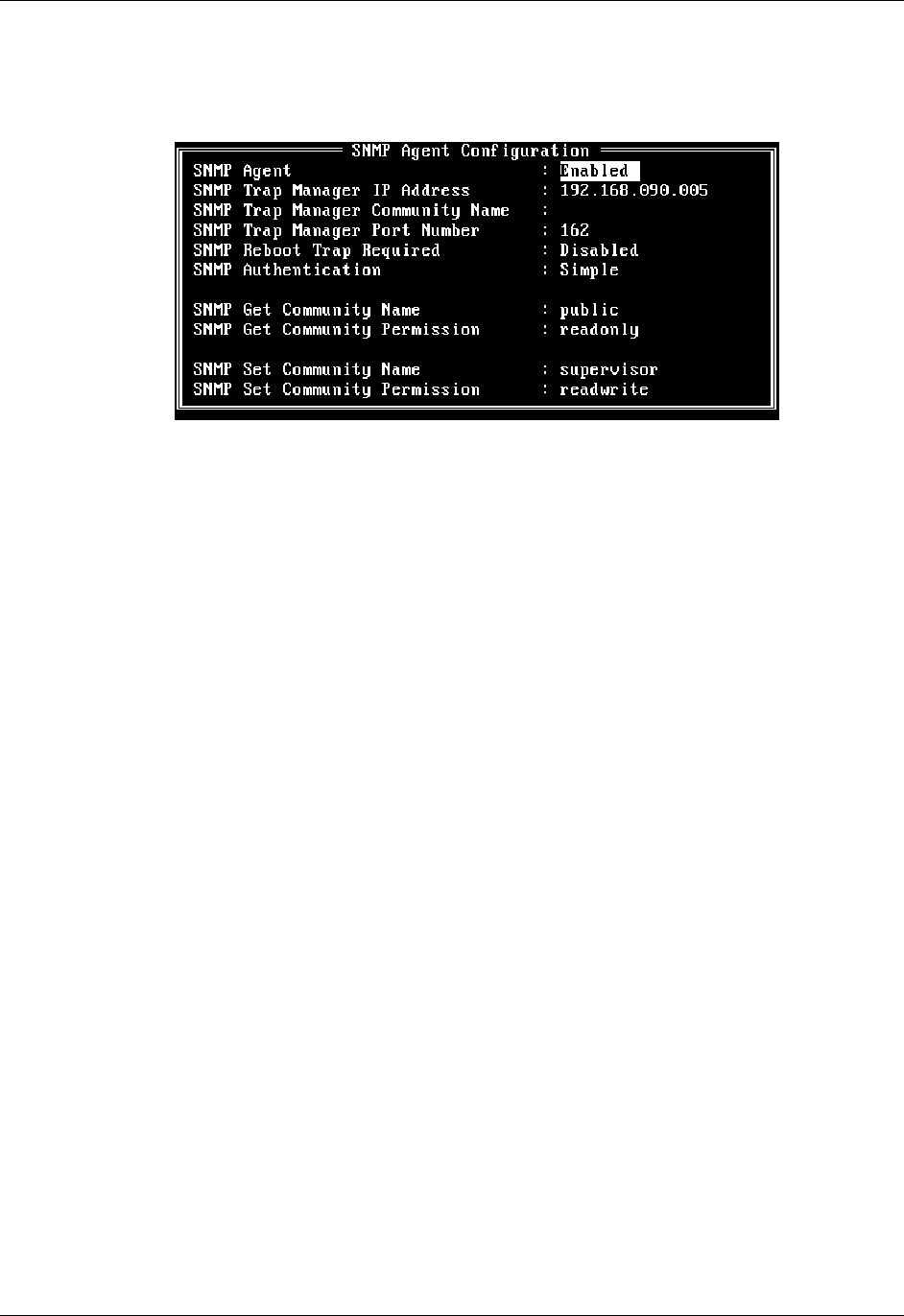

Select SNMP Agent from the Server Setup menu to open the SNMP Agent

Configuration window.

The RASExpress server can be managed or configured by any standard Simple

Network Management Protocol (SNMP) manager.

SNMP Agent

Select Enabled to enable SNMP management, Disabled to disable it.

SNMP Trap Manager IP Address

Type the IP address of the SNMP trap manager.

SNMP Trap Manager Community Name

Type the community name of the SNMP trap manager. Any SNMP traps that are

generated by the RASExpress server will be sent to this manager.

SNMP Trap Manager Port Number

Type the port number of the SNMP trap manager. The default port number is 162.

SNMP Reboot Required Trap

Enable to send a trap to the manager whenever a configuration change is made that

requires a reboot of the server.

SNMP Authentication

Select whether SNMP authentication is simple or encrypted. Set authentication to

Simple if you are usingMultiCommManager or a third party manager. This uses

plain text for Get and Set community names. You may also set authentication to

Simple if you are using Multi-Tech MultiManager.

Set authentication to Encrypted only if you are using Multi-Tech MultiManager. (not

MultiCommManager) to manage your servers. When authentication is encrypted, the

administrative user name and password and the PDU ID (a field in the SNMP request

to the agent) are used to prepare an encrypted sequence for authentication of the

SNMP request by the agent (RAS). It is a combination understood only between the

RAS and MultiManager.

SNMP Get Community Name

The RASExpress server can be configured for Get and Set communities. Type the

name of the Get community here. The default is public.
